  1. 90 Degree DIP Micro Match Socket Connector Without
    1. Packing:Tube
    2. Delivery time:7-15 days
    3. UL:Yes
    4. ROHS Compliant

inquire now

product details

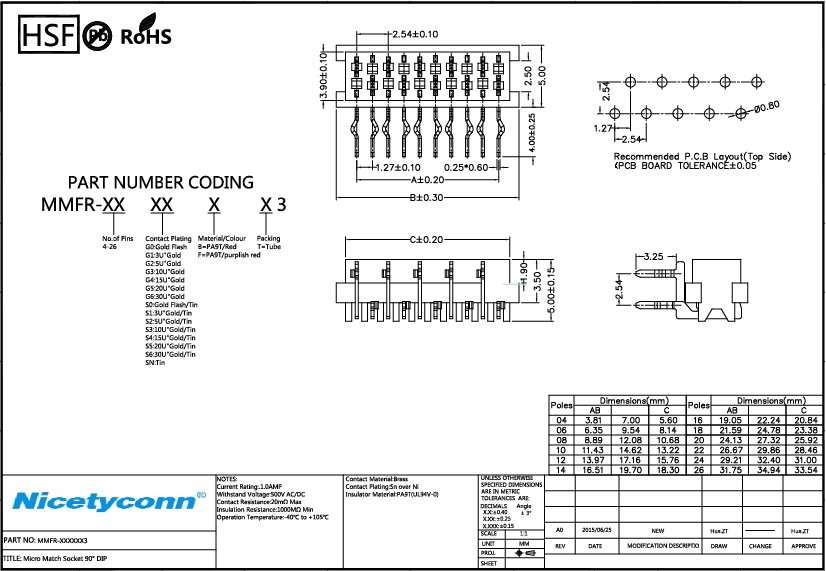

  1. 2D(PDF) Drawing
  2. Approval Specification

90 Degree DIP Micro Match Socket Connector Without Latch

Specification:

Current Rating:1.0AMP

Withstand Voltage:500V AC/DC

Contact Resistance:20mΩ Max

Insulation Resistance:1000MΩ Min

Operation Temperature:-40ºC to +105ºC

Contact Material: Brass

Contact Plating: Sn over Ni

Insulator Material: PA9T(UL94V-0)
