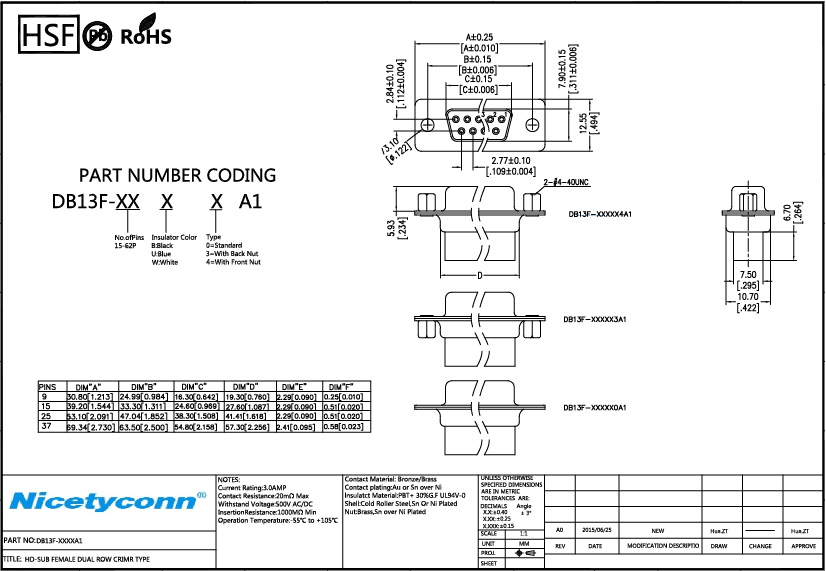

Female Dual Rows Crimp Type D-SUB

Specification:

Current Rating:3.0AMP

Withstand Voltage:500V AC/DC

Contact Resistance:20mΩ Max

Insulation Resistance:1000MΩ Min

Operation Temperature:-55ºC to +105ºC

Contact Material: Bronze/Brass

Contact Plating: Au or Sn over Ni

Insulator Material: PBT+30%G.F (UL94V-0)

Shell: Cold Rolled Steel, Sn or Ni Plated

Nut: Brass, Sn over Ni Plated
