  1. 2.54 mm Pitch SMT Metal Latch Ejector Header
    1. Packing:Tray, Tube
    2. Delivery time:7-15 days
    3. UL:Yes
    4. ROHS Compliant

inquire now

product details

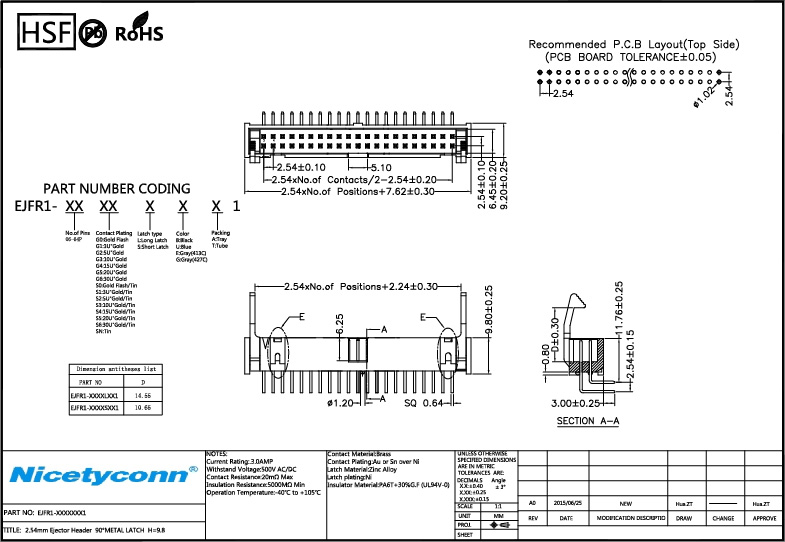

  1. 2D(PDF) Drawing
  2. Approval Specification

2.54 mm Pitch SMT Metal Latch Ejector Header Connector

Specification:

Current Rating: 3.0AMP

Withstanding voltage: 500V AC/DC

Contact Resistance: 20mΩ Max

Insulation Resistance: 5000 mΩ Min

Operation Temperature: -40ºC to +105ºC

Contact Material:Brass

Contact Plating:Au or Sn over Ni

Insulator Material:PA6T+30%G.F(UL94V-0)

Latch Material: Zinc Alloy

Latch Plating: Ni
