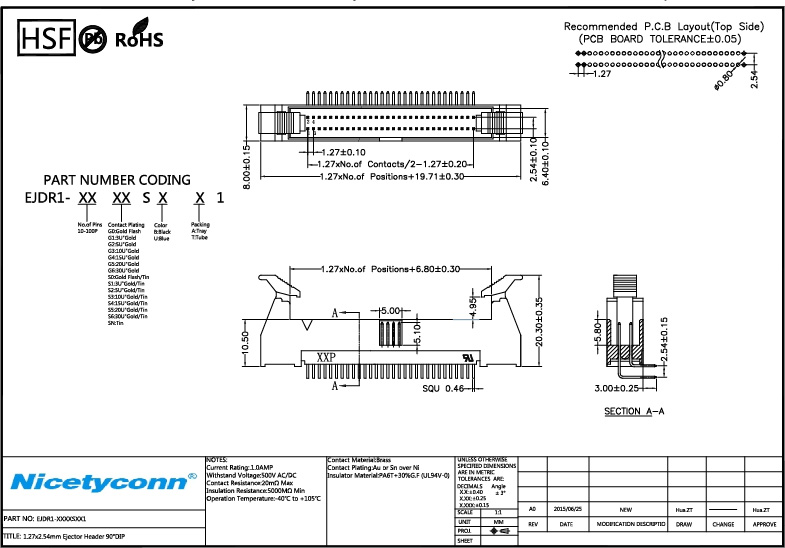

1.27*2.54 mm Pitch Right Angle Ejector Header Connector |
Specification: |
Current Rating: 1.0AMP |
Withstanding voltage: 500V AC/DC |
Contact Resistance: 20mΩ Max |
Insulation Resistance: 5000 mΩ Min |
Operation Temperature: -40ºC to +105ºC |
Contact Material:Brass |
Contact Plating:Au or Sn over Ni |
Insulator Material:PA6T+30%G.F(UL94V-0) |
