  • 1
  1. 1.27 Pitch S Type SMT Without Post Ejector Header
    1. Packing:Tray, Tube
    2. Delivery time:7-15 days
    3. UL:Yes
    4. ROHS Compliant

inquire now

product details

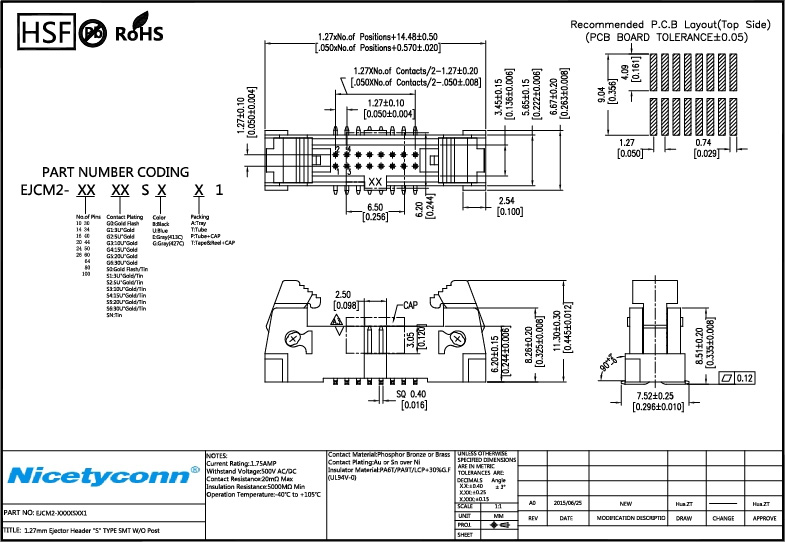

  1. 2D(PDF) Drawing
  2. Approval Specification

1.27 Pitch S Type SMT Without Post Ejector Header

Specification:

Current Rating: 1.75AMP

Withstanding voltage: 500V AC/DC

Contact Resistance: 20mΩ Max

Insulation Resistance: 5000 mΩ Min

Operation Temperature: -40ºC to +105ºC

Contact Material: Phosphor Bronze or Brass

Contact Plating: Au or Sn over Ni

Insulator Material: PA6T/PA9T/LCP+30%G.F (UL94V-0)
