  1. Micro USB 3.0 mm 90 Degree SMT Female Connector
    1. Packing:Tray, Tube
    2. Delivery time:7-15 days
    3. UL:Yes
    4. ROHS Compliant

inquire now

product details

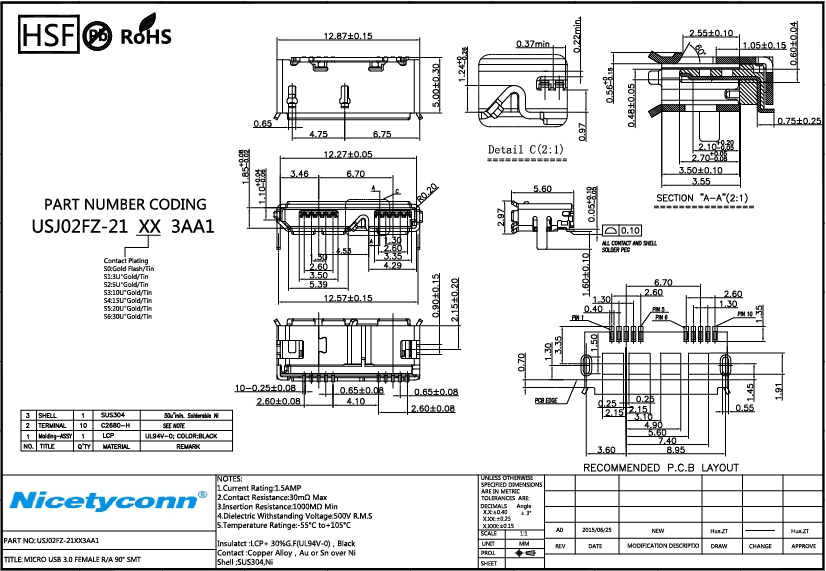

  1. 2D(PDF) Drawing
  2. Approval Specification

Micro USB 3.0 mm 90 Degree SMT Female Connector

Specification:

Current Rating: 1.5AMP

Contact Resistance: 30mΩ Max

Insertion Resistance: 1000MΩ Min

Dielectric withstanding voltage: 500V R.M.S

Temperature Range: -55ºC to +105ºC

Insulator: LCP+30% GF(UL94V-0), Black

Contact: Copper Alloy, Au or Sn over Ni

Shell; SUS304.Ni
