  1. 2.0 mm Pitch Right Angle Box Header Plug H=5.70
    1. Packing:Tray, Tube
    2. Delivery time:7-15 days
    3. UL:Yes
    4. ROHS Compliant

inquire now

product details

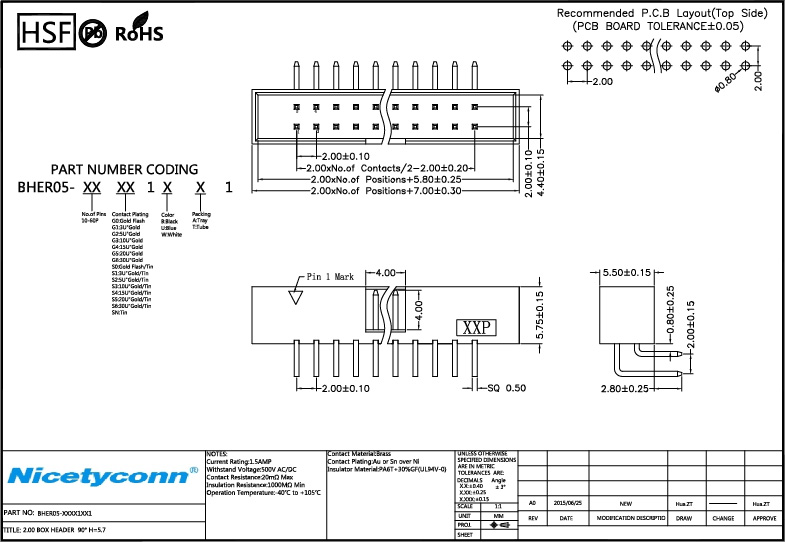

  1. 2D(PDF) Drawing
  2. Approval Specification

2.0 mm Pitch Right Angle Box Header Plug H=5.70

Specification:

Current Rating: 1.5AMP

Withstand Voltage: 500V AC/DC

Contact Resistance: 20mΩ Max

Insulation Resistance: 1000MΩ Min

Operation Temperature: -40ºC to +105ºC

Insulation Material: PA6T30%GF(UL94V-0)

Contact Material: brass

Contact Plating: Au or Sn over Ni
