  • 1
  1. 2.54mm Pitch 90 Degree Right Angle Wafer
    1. Packing:Tube, PE bag
    2. Delivery time:7-15 days
    3. UL:Yes
    4. ROHS Compliant

inquire now

product details

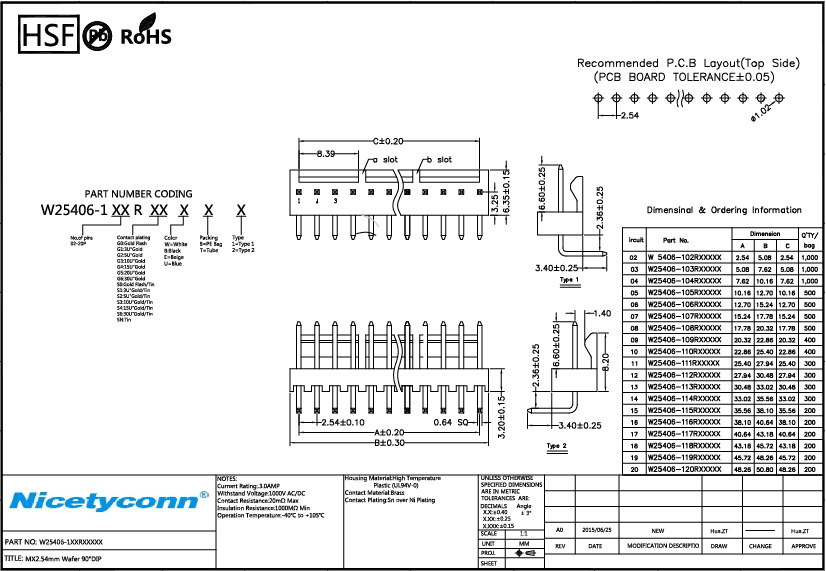

  1. 2D(PDF) Drawing
  2. Approval Specification

2.54mm Pitch 90 Degree Right Angle Wafer

Specification:

Current Rating: 3.0AMP

Withstand Voltage: 1000V AC/DC

Contact Resistance: 20mΩ Max

Insulation Resistance: 1000MΩ Min

Operation Temperature: -40ºC to +105ºC

Insulation Material: High temperature plastic(UL94V-0)

Contact Material: brass

Contact Plating: Au or Sn over Ni
