  • 1
  1. 3.96 mm Pitch 180 Degree Straight Type Through Hol
    1. Packing:Tube, PE bag
    2. Delivery time:7-15 days
    3. UL:Yes
    4. ROHS Compliant

inquire now

product details

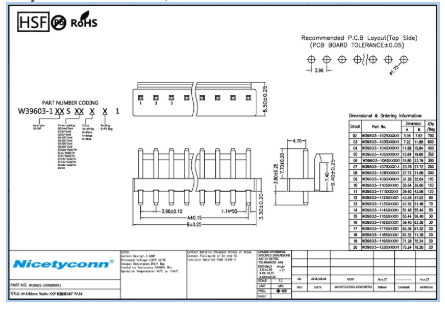

  1. 2D(PDF) Drawing
  2. Approval Specification

3.96 mm Pitch 180 Degree Straight Type Through Hole Wafer

Specification:

Current Rating: 5.0AMP

Withstand Voltage: 1000V AC/DC

Contact Resistance: 20mΩ Max

Insulation Resistance: 1000MΩ Min

Operation Temperature: -25ºC to +85ºC

Insulation Material: PA66(UL94V-0)

Contact Material: Phosphor bronze or brass

Contact Plating: Au or Sn over Ni
